A class that represents a screen layout Stores all screen elements for a specific screen. More...

#include <Screen.hpp>

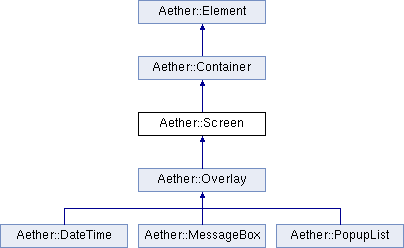

Inheritance diagram for Aether::Screen:

Public Member Functions
	Screen ()
	Constructs a new (empty) Screen object.

virtual void	onLoad ()
	Invoked once when the screen is requested to be 'shown'. This method should set up all child elements.

virtual void	onUnload ()
	Invoked once when the screen has been replaced by another screen. This method should tidy up all child elements.

void	onButtonPress (Button btn, std::function< void()> func)
	Assigns a function to invoke when a button is pressed. More...

void	onButtonRelease (Button btn, std::function< void()> func)
	Assigns a function to invoke when a button is released. More...

bool	handleEvent (InputEvent *event)
	Attempts to handle the event if it is a button press/release. More...

Public Member Functions inherited from Aether::Container
	Container (int x=0, int y=0, int w=100, int h=100)
	Construct a new Container object. More...

void	setActive ()
	Re-highlight/focus the focused element.

void	setInactive ()
	Removes focus from the focused element.

void	addElement (Element *e)
	Adds new element a child. More...

bool	removeElement (Element *e)
	Attempt to delete given child element. More...

void	removeAllElements ()
	Deletes all children elements.

bool	returnElement (Element *e)
	Attempt to remove the given child element. More...

void	returnAllElements ()
	Removes (but does not delete) all children elements.

Public Member Functions inherited from Aether::Element
	Element (int x=0, int y=0, int w=100, int h=100)
	Construct a new Element object. More...

int	x ()
	Returns x-coordinate of element. More...

int	y ()
	Returns y-coordinate of element. More...

int	w ()
	Returns width of element. More...

int	h ()
	Returns height of element. More...

virtual void	setX (int x)
	Set x-coordinate of element. More...

virtual void	setY (int y)
	Set y-coordinate of element. More...

virtual void	setW (int w)
	Set width of element. More...

virtual void	setH (int h)
	Set height of element. More...

virtual void	setXY (int x, int y)
	Set co-ordinates of element. More...

virtual void	setWH (int w, int h)
	Set size of element. More...

virtual void	setXYWH (int x, int y, int w, int h)
	Setter size and co-ordinates of element. More...

Element *	parent ()
	Returns the parent element of this element. More...

void	setParent (Element *p)
	Set the parent element of this element. More...

bool	isVisible ()
	Check if current element is visible on-screen. More...

bool	hidden ()
	Check if current element is hidden. More...

void	setHidden (bool b)
	Set whether element is hidden or not. More...

bool	selected ()
	Check if current element is selected. More...

virtual void	setSelected (bool b)
	Set whether element is selected or not. More...

bool	selectable ()
	Check if current element is selectable. More...

void	setSelectable (bool b)
	Set whether element is selectable or not. More...

bool	touchable ()
	Check if current element is touch responsive. More...

void	setTouchable (bool b)
	Set whether element is touch responsive or not. More...

bool	highlighted ()
	Check if current element is highlighted. More...

void	setHighlighted (bool b)
	Set whether element is highlighted or not. More...

bool	hasHighlighted ()
	Check if current element has highlighted children element. More...

void	setHasHighlighted (bool b)
	Set whether element has highlighted children element or not. More...

bool	hasSelectable ()
	Check if current element has selectable children element. More...

void	setHasSelectable (bool b)
	Set whether element has selectable children element or not. More...

bool	hasSelected ()
	Check if current element has selected children element. More...

void	setHasSelected (bool b)
	Set whether element has selected children element or not. More...

void	setFocused (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...

void	setFocussed (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...

Element *	focused ()
	Returns the currently focused element. More...

Element *	focussed ()
	Returns the currently focused element. More...

std::function< void()>	onPressFunc ()
	Returns function invoked when the element is pressed. More...

void	onPress (std::function< void()> f)
	Sets the function to invoked when the element is pressed. More...

virtual void	update (unsigned int dt)
	Update is passed time since last frame (for animations) More...

virtual void	render ()
	Render child elements + highlights.

virtual Drawable *	renderHighlightBG ()
	Renders the highlight background. More...

virtual Drawable *	renderHighlight ()
	Renders the highlight border. More...

virtual Drawable *	renderSelection ()
	Renders the selection overlay. More...

virtual	~Element ()
	Destroy the Element object.

Additional Inherited Members
Protected Member Functions inherited from Aether::Container
void	addElementAt (Element *e, size_t i)

Protected Member Functions inherited from Aether::Element
void	renderHighlightTextures ()
	Renders cached highlight textures.

void	renderSelectionTexture ()
	Renders cached selection texture.

void	addElementAt (Element *e, size_t i)
	Add element at given index in vector. More...

Protected Attributes inherited from Aether::Element
Element *	parent_
	Pointer to parent element, if there is one.

std::vector< Element * >	children
	Vector of child elements (used to call their methods)

Element *	focused_
	Children element which is highlighted/focused (to regain focus on activation)

Static Protected Attributes inherited from Aether::Element
static Colour	hiBGColour
	Background colour if element is highlighted.

static Colour	hiBorderColour
	Border colour if element is highlighted.

static Colour	selColour
	Selected colour if element is highlighted.

static unsigned int	hiSize
	Size of highlight border.

static Drawable *	hiBGTex
	Highlight background texture.

static Drawable *	hiBorderTex
	Highlight border texture.

static Drawable *	selTex
	Selection texture.

static Renderer *	renderer

static bool	isTouch
	Indicator on whether the touch is "active" (i.e. hide highlighting) or not.

Detailed Description

A class that represents a screen layout Stores all screen elements for a specific screen.

Member Function Documentation

◆ handleEvent()

bool Aether::Screen::handleEvent ( InputEvent * event )

virtual

Attempts to handle the event if it is a button press/release.

Parameters

event event to handle

Returns: Whether the event was handled by the screen.

Reimplemented from Aether::Container.

◆ onButtonPress()

void Aether::Screen::onButtonPress	(	Button	btn,
		std::function< void()>	func
	)

Assigns a function to invoke when a button is pressed.

Note: Setting a handler will block the button press event from travelling down to children.

Parameters

btn	Button to assign function to
func	Function to invoke when button pressed

◆ onButtonRelease()

void Aether::Screen::onButtonRelease	(	Button	btn,
		std::function< void()>	func
	)

Assigns a function to invoke when a button is released.

Note: Setting a handler will block the button release event from travelling down to children.

Parameters

btn	Button to assign function to
func	Function to invoke when button released

The documentation for this class was generated from the following file:

include/Aether/Screen.hpp
