Element is the base class to be inherited to form all other types of elements. More...

#include <Element.hpp>

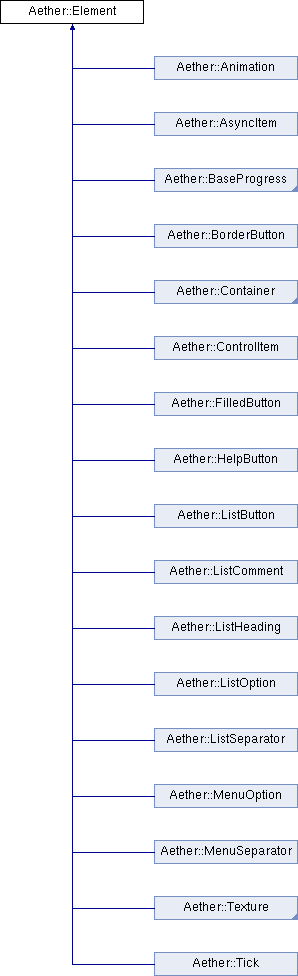

Inheritance diagram for Aether::Element:

Public Member Functions
	Element (int x=0, int y=0, int w=100, int h=100)
	Construct a new Element object. More...

int	x ()
	Returns x-coordinate of element. More...

int	y ()
	Returns y-coordinate of element. More...

int	w ()
	Returns width of element. More...

int	h ()
	Returns height of element. More...

virtual void	setX (int x)
	Set x-coordinate of element. More...

virtual void	setY (int y)
	Set y-coordinate of element. More...

virtual void	setW (int w)
	Set width of element. More...

virtual void	setH (int h)
	Set height of element. More...

virtual void	setXY (int x, int y)
	Set co-ordinates of element. More...

virtual void	setWH (int w, int h)
	Set size of element. More...

virtual void	setXYWH (int x, int y, int w, int h)
	Setter size and co-ordinates of element. More...

Element *	parent ()
	Returns the parent element of this element. More...

void	setParent (Element *p)
	Set the parent element of this element. More...

virtual void	addElement (Element *e)
	Adds new element a child. More...

virtual bool	removeElement (Element *e)
	Attempt to delete given child element. More...

virtual void	removeAllElements ()
	Deletes all children elements.

virtual bool	returnElement (Element *e)
	Attempt to remove the given child element. More...

virtual void	returnAllElements ()
	Removes (but does not delete) all children elements.

bool	isVisible ()
	Check if current element is visible on-screen. More...

bool	hidden ()
	Check if current element is hidden. More...

void	setHidden (bool b)
	Set whether element is hidden or not. More...

bool	selected ()
	Check if current element is selected. More...

virtual void	setSelected (bool b)
	Set whether element is selected or not. More...

bool	selectable ()
	Check if current element is selectable. More...

void	setSelectable (bool b)
	Set whether element is selectable or not. More...

bool	touchable ()
	Check if current element is touch responsive. More...

void	setTouchable (bool b)
	Set whether element is touch responsive or not. More...

bool	highlighted ()
	Check if current element is highlighted. More...

void	setHighlighted (bool b)
	Set whether element is highlighted or not. More...

bool	hasHighlighted ()
	Check if current element has highlighted children element. More...

void	setHasHighlighted (bool b)
	Set whether element has highlighted children element or not. More...

bool	hasSelectable ()
	Check if current element has selectable children element. More...

void	setHasSelectable (bool b)
	Set whether element has selectable children element or not. More...

bool	hasSelected ()
	Check if current element has selected children element. More...

void	setHasSelected (bool b)
	Set whether element has selected children element or not. More...

virtual void	setActive ()
	Set element as activated.

virtual void	setInactive ()
	Set element as in-activated.

void	setFocused (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...

void	setFocussed (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...

Element *	focused ()
	Returns the currently focused element. More...

Element *	focussed ()
	Returns the currently focused element. More...

std::function< void()>	onPressFunc ()
	Returns function invoked when the element is pressed. More...

void	onPress (std::function< void()> f)
	Sets the function to invoked when the element is pressed. More...

virtual bool	handleEvent (InputEvent *e)
	Attempt to handle a given event. More...

virtual void	update (unsigned int dt)
	Update is passed time since last frame (for animations) More...

virtual void	render ()
	Render child elements + highlights.

virtual Drawable *	renderHighlightBG ()
	Renders the highlight background. More...

virtual Drawable *	renderHighlight ()
	Renders the highlight border. More...

virtual Drawable *	renderSelection ()
	Renders the selection overlay. More...

virtual	~Element ()
	Destroy the Element object.

Protected Member Functions
void	renderHighlightTextures ()
	Renders cached highlight textures.

void	renderSelectionTexture ()
	Renders cached selection texture.

void	addElementAt (Element *e, size_t i)
	Add element at given index in vector. More...

Protected Attributes
Element *	parent_
	Pointer to parent element, if there is one.

std::vector< Element * >	children
	Vector of child elements (used to call their methods)

Element *	focused_
	Children element which is highlighted/focused (to regain focus on activation)

Static Protected Attributes
static Colour	hiBGColour
	Background colour if element is highlighted.

static Colour	hiBorderColour
	Border colour if element is highlighted.

static Colour	selColour
	Selected colour if element is highlighted.

static unsigned int	hiSize
	Size of highlight border.

static Drawable *	hiBGTex
	Highlight background texture.

static Drawable *	hiBorderTex
	Highlight border texture.

static Drawable *	selTex
	Selection texture.

static Renderer *	renderer

static bool	isTouch
	Indicator on whether the touch is "active" (i.e. hide highlighting) or not.

Friends
void	moveHighlight (Element *e)
	Returns the element currently highlighted within given element or nullptr if none found. More...

Detailed Description

Element is the base class to be inherited to form all other types of elements.

Constructor & Destructor Documentation

◆ Element()

Aether::Element::Element	(	int	x = `0`,
		int	y = `0`,
		int	w = `100`,
		int	h = `100`
	)

Construct a new Element object.

Co-ordinates and size are optional. Default value of co-ordinates are (0, 0) and the default value of size are (100, 100). Parent is set as nullptr

Parameters

x	x-coordinate of element
y	y-coordinate of element
w	width of element
h	height of element

Member Function Documentation

◆ addElement()

virtual void Aether::Element::addElement ( Element * e )

virtual

Adds new element a child.

Parameters

e	element to add

Reimplemented in Aether::Scrollable, and Aether::Container.

◆ addElementAt()

void Aether::Element::addElementAt	(	Element *	e,
		size_t	i
	)

protected

Add element at given index in vector.

Note: Will insert at end if index is beyond the end!

Parameters

e	element to add
i	index to insert at

◆ focused()

Element* Aether::Element::focused ( )

Returns the currently focused element.

Note: This is the same as focussed

Returns: focused element

◆ focussed()

Element* Aether::Element::focussed ( )

Returns the currently focused element.

Note: This is the same as focused

Returns: focused element

◆ h()

int Aether::Element::h ( )

Returns height of element.

Returns: int height of element

◆ handleEvent()

virtual bool Aether::Element::handleEvent ( InputEvent * e )

virtual

Attempt to handle a given event.

Parameters

e	event to handle

Returns: true if event was handled; false if event was not handled

Reimplemented in Aether::Scrollable, Aether::DateTime, Aether::Spinner, Aether::List, Aether::Screen, and Aether::Container.

◆ hasHighlighted()

bool Aether::Element::hasHighlighted ( )

Check if current element has highlighted children element.

Returns: true if current element has highlighted children element; false if current element does not have highlighted children element

◆ hasSelectable()

bool Aether::Element::hasSelectable ( )

Check if current element has selectable children element.

Returns: true if current element has selectable children element; false if current element doesn't have selectable children element

◆ hasSelected()

bool Aether::Element::hasSelected ( )

Check if current element has selected children element.

Returns: true if current element has selected children element; false if current element doesn't have selected children element

◆ hidden()

bool Aether::Element::hidden ( )

Check if current element is hidden.

Returns: true if element is hidden; false if element is not hidden

◆ highlighted()

bool Aether::Element::highlighted ( )

Check if current element is highlighted.

Returns: true if current element is highlighted; false if current element is not highlighted

◆ isVisible()

bool Aether::Element::isVisible ( )

Check if current element is visible on-screen.

Returns: true if element is visible; false if element is not visible

◆ onPress()

void Aether::Element::onPress ( std::function< void()> f )

Sets the function to invoked when the element is pressed.

Parameters

f	Function to invoke

◆ onPressFunc()

std::function<void()> Aether::Element::onPressFunc ( )

Returns function invoked when the element is pressed.

Returns: Function invoked when the element is pressed, or nullptr if one isn't assigned.

◆ parent()

Element* Aether::Element::parent ( )

Returns the parent element of this element.

Returns: parent element

◆ removeElement()

virtual bool Aether::Element::removeElement ( Element * e )

virtual

Attempt to delete given child element.

Note: This calls the element destructor if it is found

Parameters

e	child to delete

Returns: true if deleted successfully (i.e. was a child); false if not a child of element

Reimplemented in Aether::Scrollable, and Aether::Container.

◆ renderHighlight()

virtual Drawable* Aether::Element::renderHighlight ( )

virtual

Renders the highlight border.

Note: The texture will be positioned centred in the middle of the element

Returns: Rendered texture to show when highlighted

Reimplemented in Aether::FilledButton, Aether::BorderButton, Aether::Ellipse, and Aether::HelpButton.

◆ renderHighlightBG()

virtual Drawable* Aether::Element::renderHighlightBG ( )

virtual

Renders the highlight background.

Note: The texture will be positioned centred in the middle of the element

Returns: Rendered texture to show when highlighted

Reimplemented in Aether::FilledButton, Aether::BorderButton, Aether::Ellipse, and Aether::HelpButton.

◆ renderSelection()

virtual Drawable* Aether::Element::renderSelection ( )

virtual

Renders the selection overlay.

Note: The texture will be positioned centred in the middle of the element

Returns: Rendered texture to show when selected

Reimplemented in Aether::FilledButton, Aether::BorderButton, Aether::Ellipse, and Aether::HelpButton.

◆ returnElement()

virtual bool Aether::Element::returnElement ( Element * e )

virtual

Attempt to remove the given child element.

Note: This does not call the element's destructor, hence it can be reused

Parameters

e	child to remove

Returns: true if removed successfully (i.e. was a child); false if not a child of element

Reimplemented in Aether::Scrollable, and Aether::Container.

◆ selectable()

bool Aether::Element::selectable ( )

Check if current element is selectable.

Returns: true if current element is selectable; false if current element is not selectable

◆ selected()

bool Aether::Element::selected ( )

Check if current element is selected.

Returns: true if current element is selected; false if current element is not selected

◆ setFocused()

void Aether::Element::setFocused ( Element * e )

Sets current element as unfocused and instead focuses a sub-element.

Note: This is the same as setFocussed

Parameters

e	element to focus

◆ setFocussed()

void Aether::Element::setFocussed ( Element * e )

Sets current element as unfocused and instead focuses a sub-element.

Note: This is the same as setFocused

Parameters

e	element to focus

◆ setH()

virtual void Aether::Element::setH ( int h )

virtual

Set height of element.

Parameters

h	new height of element

Reimplemented in Aether::Scrollable, Aether::ListOption, Aether::ControlBar, Aether::AsyncItem, Aether::ListButton, Aether::ListHeadingHelp, Aether::FilledButton, Aether::BorderButton, Aether::RoundProgressBar, and Aether::ProgressBar.

◆ setHasHighlighted()

void Aether::Element::setHasHighlighted ( bool b )

Set whether element has highlighted children element or not.

Parameters

b	state to change highlighted children element status to

◆ setHasSelectable()

void Aether::Element::setHasSelectable ( bool b )

Set whether element has selectable children element or not.

Parameters

b	state to change selectable children element status to

◆ setHasSelected()

void Aether::Element::setHasSelected ( bool b )

Set whether element has selected children element or not.

Parameters

b	state to change selected children element status to

◆ setHidden()

void Aether::Element::setHidden ( bool b )

Set whether element is hidden or not.

Parameters

b	state to change hidden status to

◆ setHighlighted()

void Aether::Element::setHighlighted ( bool b )

Set whether element is highlighted or not.

Parameters

b	state to change highlighted status to

◆ setParent()

void Aether::Element::setParent ( Element * p )

Set the parent element of this element.

Parameters

p	parent element to set as

◆ setSelectable()

void Aether::Element::setSelectable ( bool b )

Set whether element is selectable or not.

Parameters

b	state to change selectable status to

◆ setSelected()

virtual void Aether::Element::setSelected ( bool b )

virtual

Set whether element is selected or not.

Parameters

b	state to change selected status to

◆ setTouchable()

void Aether::Element::setTouchable ( bool b )

Set whether element is touch responsive or not.

Parameters

b	state to change touch responsive status to

◆ setW()

virtual void Aether::Element::setW ( int w )

virtual

Set width of element.

Parameters

w	new width of element

Reimplemented in Aether::Scrollable, Aether::ListOption, Aether::ControlBar, Aether::AsyncItem, Aether::Text, Aether::ListButton, Aether::ListHeadingHelp, Aether::FilledButton, Aether::BorderButton, Aether::RoundProgressBar, Aether::ProgressBar, Aether::ListComment, Aether::MenuOption, and Aether::MenuSeparator.

◆ setWH()

virtual void Aether::Element::setWH	(	int	w,
		int	h
	)

virtual

Set size of element.

Parameters

w	new width of element
h	new height of element

◆ setX()

virtual void Aether::Element::setX ( int x )

virtual

Set x-coordinate of element.

Parameters

x	new x-coordinate of element

◆ setXY()

virtual void Aether::Element::setXY	(	int	x,
		int	y
	)

virtual

Set co-ordinates of element.

Parameters

x	new x-coordinate of element
y	new y-coordinate of element

◆ setXYWH()

virtual void Aether::Element::setXYWH	(	int	x,
		int	y,
		int	w,
		int	h
	)

virtual

Setter size and co-ordinates of element.

Parameters

x	new x-coordinate of element
y	new y-coordinate of element
w	new width of element
h	new height of element

◆ setY()

virtual void Aether::Element::setY ( int y )

virtual

Set y-coordinate of element.

Parameters

y	new y-coordinate of element

◆ touchable()

bool Aether::Element::touchable ( )

Check if current element is touch responsive.

Returns: true if current element is touch responsive; false if current element is not touch responsive

◆ update()

virtual void Aether::Element::update ( unsigned int dt )

virtual

Update is passed time since last frame (for animations)

Parameters

dt	change in time

Reimplemented in Aether::Scrollable, Aether::Texture, Aether::Text, Aether::Spinner, Aether::List, Aether::Animation, and Aether::Menu.

◆ w()

int Aether::Element::w ( )

Returns width of element.

Returns: int width of element

◆ x()

int Aether::Element::x ( )

Returns x-coordinate of element.

Returns: int x-coordinate of element

◆ y()

int Aether::Element::y ( )

Returns y-coordinate of element.

Returns: int y-coordinate of element

Friends And Related Function Documentation

◆ moveHighlight

void moveHighlight ( Element * e )

friend

Returns the element currently highlighted within given element or nullptr if none found.

Parameters

e	currently highlighted element within given element or nullptr if none found

The documentation for this class was generated from the following file:

include/Aether/base/Element.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Element()

Member Function Documentation

◆ addElement()

◆ addElementAt()

◆ focused()

◆ focussed()

◆ h()

◆ handleEvent()

◆ hasHighlighted()

◆ hasSelectable()

◆ hasSelected()

◆ hidden()

◆ highlighted()

◆ isVisible()

◆ onPress()

◆ onPressFunc()

◆ parent()

◆ removeElement()

◆ renderHighlight()

◆ renderHighlightBG()

◆ renderSelection()

◆ returnElement()

◆ selectable()

◆ selected()

◆ setFocused()

◆ setFocussed()

◆ setH()

◆ setHasHighlighted()

◆ setHasSelectable()

◆ setHasSelected()

◆ setHidden()

◆ setHighlighted()

◆ setParent()

◆ setSelectable()

◆ setSelected()

◆ setTouchable()

◆ setW()

◆ setWH()

◆ setX()

◆ setXY()

◆ setXYWH()

◆ setY()

◆ touchable()

◆ update()

◆ w()

◆ x()

◆ y()

Friends And Related Function Documentation

◆ moveHighlight
