Aether::Texture Class Reference

A Texture is an element that stores a texture to render in the window. It can't be instantiated alone as it's essentially a 'container' element, but is inherited by classes such as Text and Image which generate the texture. This class provides common getter methods and handles rendering texture asynchronously. More...

#include <Texture.hpp>

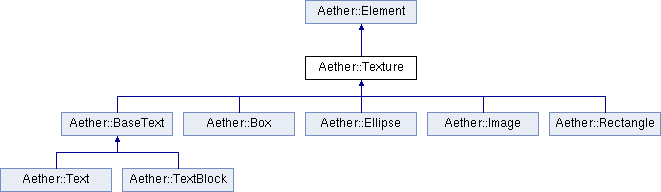

Inheritance diagram for Aether::Texture:

Classes
class	RenderJob
	Extends a thread pool job to render the given texture element on a separate thread. More...

Public Member Functions
	Texture (const int x=0, const int y=0)
	Constructs a new texture element. Position defaults to (0, 0). More...
void	onRenderDone (const std::function< void()> func)
	Assigns a function to invoke when the texture is finished rendering. An example use for this is to resize/position based on the texture's size. More...
Colour	colour ()
	Returns the texture's tint colour. More...
void	setColour (const Colour &col)
	Set the colour to tint the texture with. More...
int	textureWidth ()
	Returns the width of the stored texture. Returns 0 if the texture is being rendered asynchronously and isn't finished. More...
int	textureHeight ()
	Returns the height of the stored texture. Returns 0 if the texture is being rendered asynchronously and isn't finished. More...
void	setMask (const int x, const int y, const unsigned int w, const unsigned int h)
	Set the mask area for the texture. Pixels outside of this area are not drawn. More...
void	destroy ()
	Destroy the stored texture, freeing memory. Safe to call even if no texture is stored. More...
bool	ready ()
	Returns whether the texture is finished rendering and ready to be shown. More...
void	renderSync ()
	Immediately render the texture synchronously. This has no effect if a texture is currently stored, or a task is already queued. To recreate the texture, call destroy() first.
void	renderAsync ()
	Request to start rendering the texture asynchronously. This has no effect if a texture is currently stored, or a task is already queued. To recreate the texture, call destroy() first.
void	update (unsigned int dt)
	Called internally. Overrides Element's update method to handle the asynchronous rendering operations. More...
void	render ()
	Called internally. Overrides Element's render method to actually show the stored texture.
	~Texture ()
	Destroys the texture, freeing all allocated memory.
Public Member Functions inherited from Aether::Element
	Element (int x=0, int y=0, int w=100, int h=100)
	Construct a new Element object. More...
int	x ()
	Returns x-coordinate of element. More...
int	y ()
	Returns y-coordinate of element. More...
int	w ()
	Returns width of element. More...
int	h ()
	Returns height of element. More...
virtual void	setX (int x)
	Set x-coordinate of element. More...
virtual void	setY (int y)
	Set y-coordinate of element. More...
virtual void	setW (int w)
	Set width of element. More...
virtual void	setH (int h)
	Set height of element. More...
virtual void	setXY (int x, int y)
	Set co-ordinates of element. More...
virtual void	setWH (int w, int h)
	Set size of element. More...
virtual void	setXYWH (int x, int y, int w, int h)
	Setter size and co-ordinates of element. More...
Element *	parent ()
	Returns the parent element of this element. More...
void	setParent (Element *p)
	Set the parent element of this element. More...
virtual void	addElement (Element *e)
	Adds new element a child. More...
virtual bool	removeElement (Element *e)
	Attempt to delete given child element. More...
virtual void	removeAllElements ()
	Deletes all children elements.
virtual bool	returnElement (Element *e)
	Attempt to remove the given child element. More...
virtual void	returnAllElements ()
	Removes (but does not delete) all children elements.
bool	isVisible ()
	Check if current element is visible on-screen. More...
bool	hidden ()
	Check if current element is hidden. More...
void	setHidden (bool b)
	Set whether element is hidden or not. More...
bool	selected ()
	Check if current element is selected. More...
virtual void	setSelected (bool b)
	Set whether element is selected or not. More...
bool	selectable ()
	Check if current element is selectable. More...
void	setSelectable (bool b)
	Set whether element is selectable or not. More...
bool	touchable ()
	Check if current element is touch responsive. More...
void	setTouchable (bool b)
	Set whether element is touch responsive or not. More...
bool	highlighted ()
	Check if current element is highlighted. More...
void	setHighlighted (bool b)
	Set whether element is highlighted or not. More...
bool	hasHighlighted ()
	Check if current element has highlighted children element. More...
void	setHasHighlighted (bool b)
	Set whether element has highlighted children element or not. More...
bool	hasSelectable ()
	Check if current element has selectable children element. More...
void	setHasSelectable (bool b)
	Set whether element has selectable children element or not. More...
bool	hasSelected ()
	Check if current element has selected children element. More...
void	setHasSelected (bool b)
	Set whether element has selected children element or not. More...
virtual void	setActive ()
	Set element as activated.
virtual void	setInactive ()
	Set element as in-activated.
void	setFocused (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...
void	setFocussed (Element *e)
	Sets current element as unfocused and instead focuses a sub-element. More...
Element *	focused ()
	Returns the currently focused element. More...
Element *	focussed ()
	Returns the currently focused element. More...
std::function< void()>	onPressFunc ()
	Returns function invoked when the element is pressed. More...
void	onPress (std::function< void()> f)
	Sets the function to invoked when the element is pressed. More...
virtual bool	handleEvent (InputEvent *e)
	Attempt to handle a given event. More...
virtual Drawable *	renderHighlightBG ()
	Renders the highlight background. More...
virtual Drawable *	renderHighlight ()
	Renders the highlight border. More...
virtual Drawable *	renderSelection ()
	Renders the selection overlay. More...
virtual	~Element ()
	Destroy the Element object.

Protected Member Functions
virtual Drawable *	renderDrawable ()=0
	Method provided by children defining how to render the texture.
Protected Member Functions inherited from Aether::Element
void	renderHighlightTextures ()
	Renders cached highlight textures.
void	renderSelectionTexture ()
	Renders cached selection texture.
void	addElementAt (Element *e, size_t i)
	Add element at given index in vector. More...

Additional Inherited Members
Protected Attributes inherited from Aether::Element
Element *	parent_
	Pointer to parent element, if there is one.
std::vector< Element * >	children
	Vector of child elements (used to call their methods)
Element *	focused_
	Children element which is highlighted/focused (to regain focus on activation)
Static Protected Attributes inherited from Aether::Element
static Colour	hiBGColour
	Background colour if element is highlighted.
static Colour	hiBorderColour
	Border colour if element is highlighted.
static Colour	selColour
	Selected colour if element is highlighted.
static unsigned int	hiSize
	Size of highlight border.
static Drawable *	hiBGTex
	Highlight background texture.
static Drawable *	hiBorderTex
	Highlight border texture.
static Drawable *	selTex
	Selection texture.
static Renderer *	renderer
static bool	isTouch
	Indicator on whether the touch is "active" (i.e. hide highlighting) or not.

Detailed Description

A Texture is an element that stores a texture to render in the window. It can't be instantiated alone as it's essentially a 'container' element, but is inherited by classes such as Text and Image which generate the texture. This class provides common getter methods and handles rendering texture asynchronously.

Constructor & Destructor Documentation

Texture()

Aether::Texture::Texture	(	const int	x = 0,
		const int	y = 0
	)

Constructs a new texture element. Position defaults to (0, 0).

Parameters

x	Top-left x coordinate
y	Top-left y coordinate

Member Function Documentation

colour()

Colour Aether::Texture::colour

(

)

Returns the texture's tint colour.

Returns

Colour texture is tinted with.

destroy()

void Aether::Texture::destroy

(

)

Destroy the stored texture, freeing memory. Safe to call even if no texture is stored.

Note

This will block if the texture isn't finished rendering.

onRenderDone()

void Aether::Texture::onRenderDone

(

const std::function< void()>

func

)

Assigns a function to invoke when the texture is finished rendering. An example use for this is to resize/position based on the texture's size.

Parameters

func	Function to invoke, or nullptr to remove

ready()

bool Aether::Texture::ready

(

)

Returns whether the texture is finished rendering and ready to be shown.

Returns

Whether the texture can be rendered on the next frame.

setColour()

void Aether::Texture::setColour

(

const Colour &

col

)

Set the colour to tint the texture with.

Parameters

col	Colour to tint with

setMask()

void Aether::Texture::setMask	(	const int	x,
		const int	y,
		const unsigned int	w,
		const unsigned int	h
	)

Set the mask area for the texture. Pixels outside of this area are not drawn.

Note

This must be called after the texture is ready (see ready()), and is lost whenever the texture is changed.

Parameters

x	Top-left x coordinate of mask
y	Top-left y coordinate of mask
w	Mask width
h	Mask height

textureHeight()

int Aether::Texture::textureHeight

(

)

Returns the height of the stored texture. Returns 0 if the texture is being rendered asynchronously and isn't finished.

Returns

Stored texture's height in pixels.

textureWidth()

int Aether::Texture::textureWidth

(

)

Returns the width of the stored texture. Returns 0 if the texture is being rendered asynchronously and isn't finished.

Returns

Stored texture's width in pixels.

update()

void Aether::Texture::update ( unsigned int  dt )

virtual

Called internally. Overrides Element's update method to handle the asynchronous rendering operations.

Parameters

dt	Delta time since last frame in ms

Reimplemented from Aether::Element.

Reimplemented in Aether::Text.

---

The documentation for this class was generated from the following file:

• include/Aether/base/Texture.hpp
